PANTABOX Travel

The set for travellers

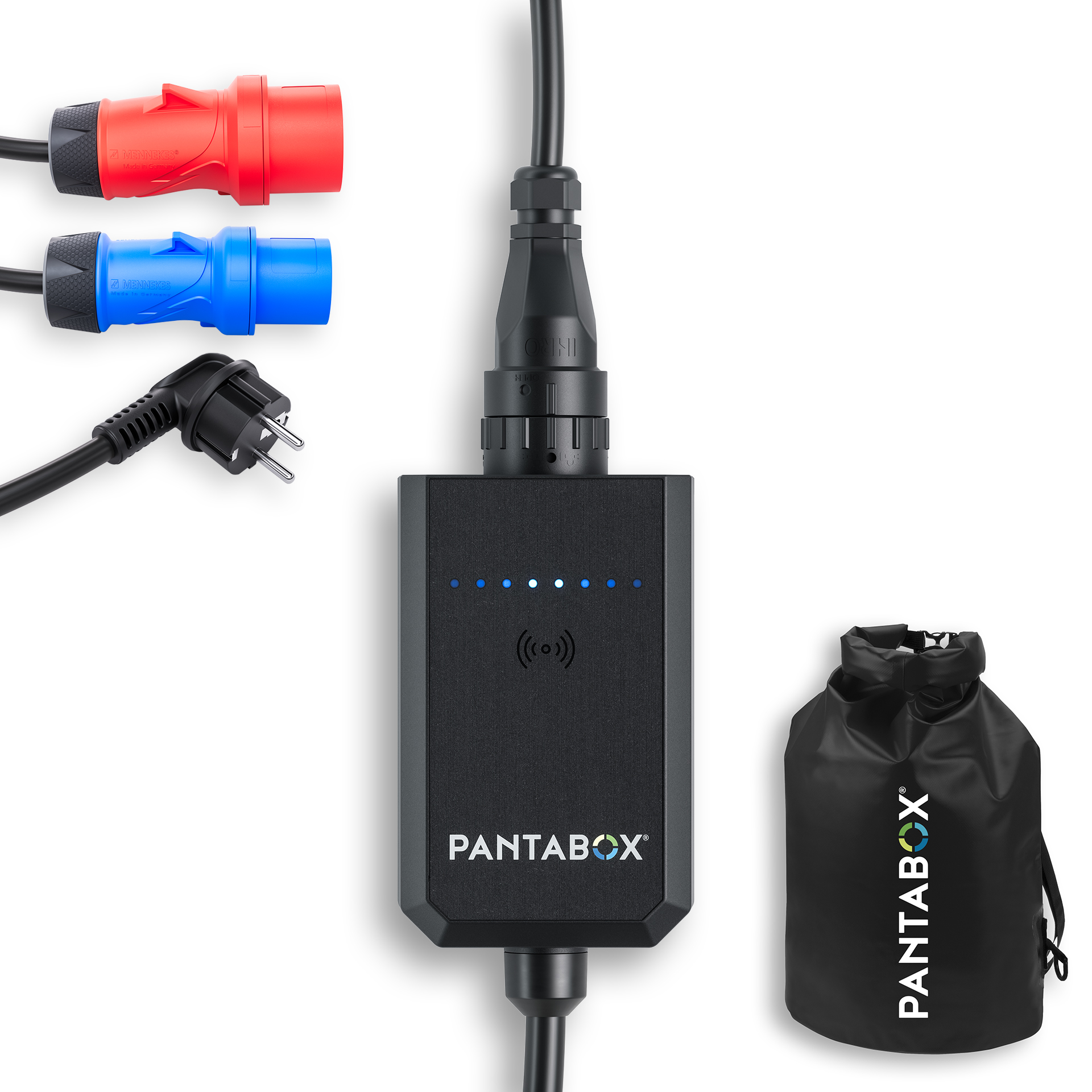

  • Practical: CEE A 1- and 3-phase adapter, Schuko plug and transport bag included
  • Lightweight: only 4.5 kg
  • Compact: Handset measuring just 117 mm x 228 mm x 65 mm
  • Powerful: 11 kW charging power
  • Robust: Drive-over safe up to 1100 kg
  • Safe: Residual current protection and protection monitoring
Commercial customers
Amazon Store
Mobile charging unit for charging electric cars
An adapter cable for charging electric cars
A CEE adapter cable for charging electric cars
A Schuko adapter cable for charging electric cars
Waterproof transport bag from the PANTABOX brand
E-car charging in front of a house with a mobile charging unit
The set for travellers

PANTABOX Travel

Adapter plug

The Schuko plug charges your electric car at sockets in Germany, France, Poland and the Czech Republic. The CEE 16A 1-phase is suitable for campsites. The "heavy current" adapter (CEE red) enables fast charging up to 11 kW and is particularly robust.

PV surplus shop

Make optimum use of your own electricity to charge your electric car. This way, you don't feed self-generated electricity into the grid, but use it yourself.

Companyware updates

Thanks to the app, the PANTABOX always stays up to date with firmware updates. No WLAN in the garage? PANTABOX supports both WLAN and Bluetooth updates.

Keyless Charge

Keyless Charge enables the automatic start of the charging process at a wallbox without a physical key card or additional user actions.

Technical data

General data

Product name:  PANTABOX Home & Travel

Vehicle coupling:  Type 2 according to IEC 62196

Rated current:  16 A

Docking station dimensions (WxHxD):  117 mm x 339 mm x 75 mm

Maximum charging power:  11 kW

Charging mode:  Mode 2 according to IEC 61851

Charging current:  6 - 16 A, adjustable in 1 A steps

Mobile utilisation option:  With handset

Weight PANTABOX docking station:  1.2 kg

Stationary utilisation option:  With docking station

Weight PANTABOX handset including charging cable:  2.7 kg

Handset dimensions (WxHxD):  117 mm x 228 mm x 65 mm

Length of the charging cable:  5 m

Mains connection, protection classes and protective devices

Overcurrent shutdown:  Yes

Earth-Off mode:  Yes

Protective conductor monitoring:  Yes

Protection class:  I according to DIN EN 61140

Active temperature monitoring (household plug):  Yes

Nominal voltage:  230 V / 400 V

Nominal frequency:  50 Hz

Protection class:  IP 44 according to DIN EN 60529 (protection against splash water)

Residual current protection Rated value of the tripping current IΔn AC: 30 mA, DC: 6 mA

Switch-off in the event of overvoltage:  Yes

Internal temperature monitoring:  Yes

IK (impact resistance) docking station:  IK 08

Automatic adapter recognition:  Yes

Protection class handset:  IP 67 in accordance with DIN EN 60529 (dust-tight and protection against temporary immersion)

Ambient conditions

Humidity:  10 - 75 % rel. humidity

Ambient temperature Transport/storage:  -40 °C to +85 °C

Ambient temperature Operation:  -25 °C to +45 °C

Drive-over safety:  Up to 1100 kg wheel load

Altitude:  Max. 3000 m above sea level

Further features

Communication:  WLAN, Bluetooth (Low Energy), RFID (13.56 MHz)

Access restriction/authentication:  RFID, app and keyless charging

Updateable:  Yes





Conformity

WEEE reg. no:  EN 68294257

CE-tested:  Yes
